High Precision Capacitive Technology
Support Windows 11/Linux/Ubuntu and Other Operating Systems

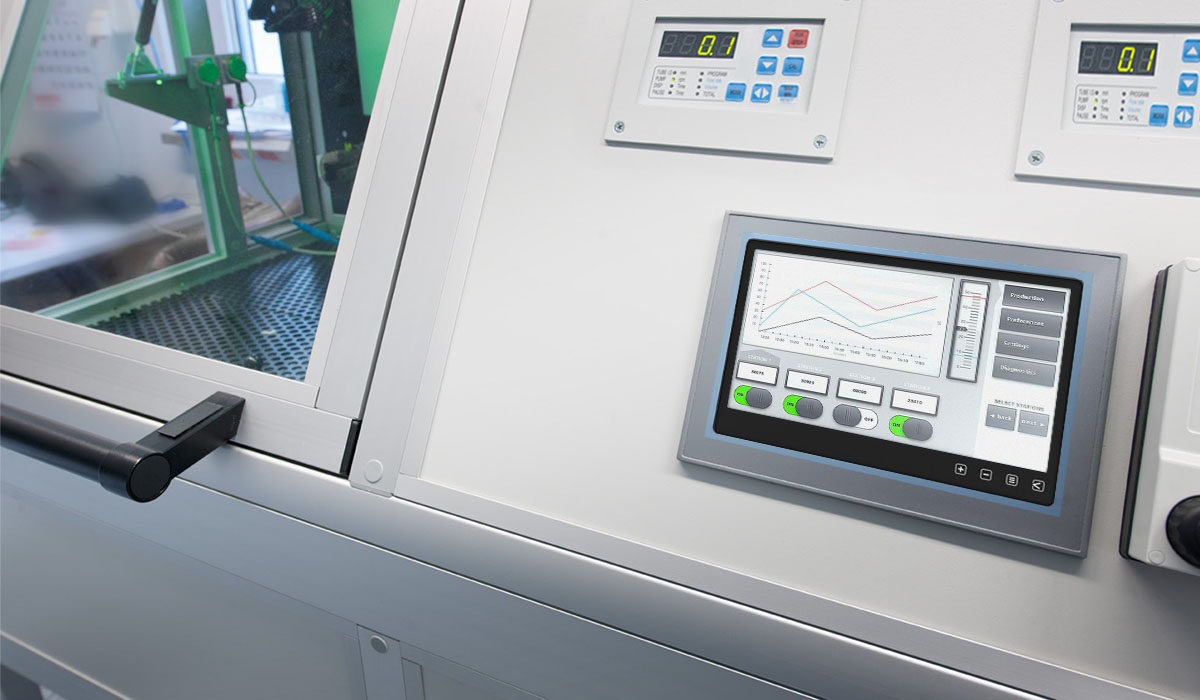

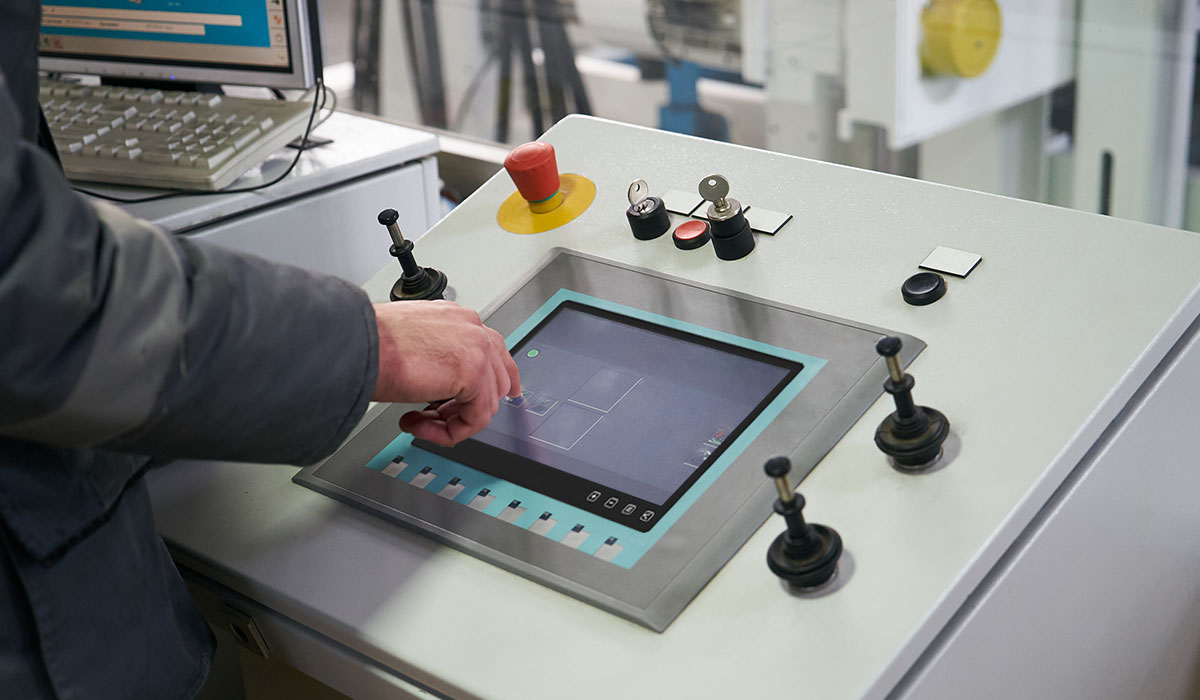

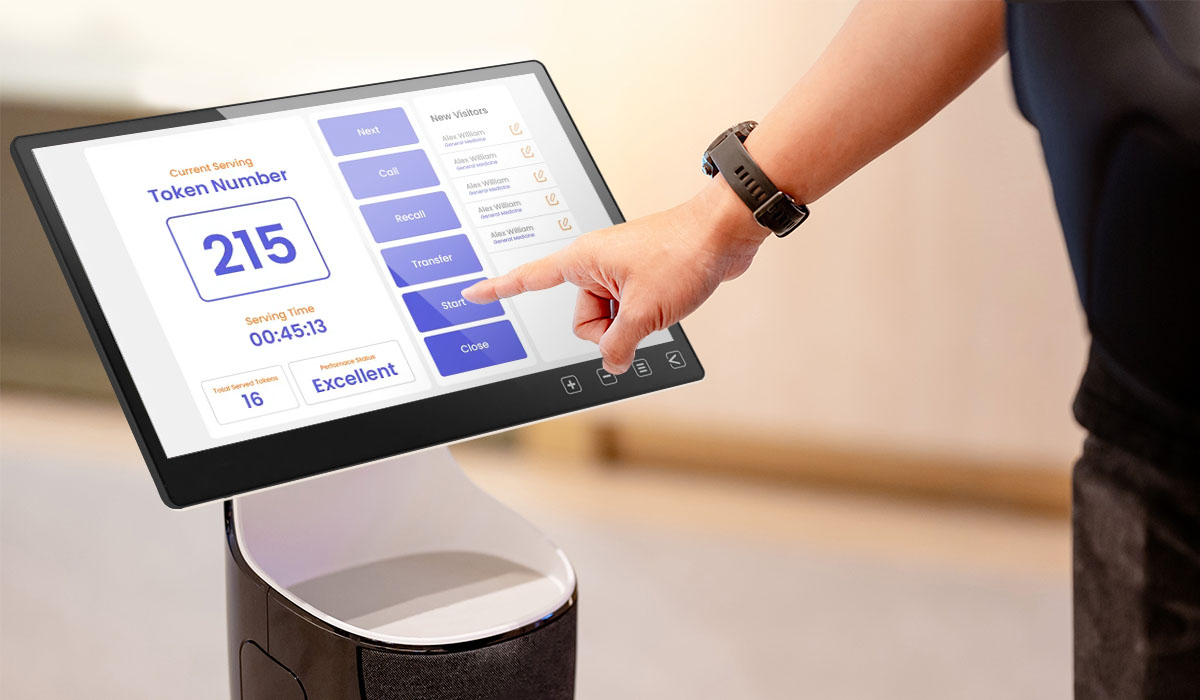

Equipped with capacitive touch panel, the monitor has excellent precision and speed. It transmits touch signals through the USB port, which is plug & play and supports Windows 11/10 ten-finger touch recognition with no drivers needed. It is also compatible with Linux, Ubuntu, Raspberry Pi OS and Chrome OS, providing diverse development environments and more intuitive user interfaces. T131B touchscreen monitor is easy to use and highly compatible with various computers, and industrial control equipment for easily building various control platforms, educational machines or interactive digital signage, etc.
*If the version of Linux does not enable touchscreen support, please contact your OS distributor to enable the "HID multi-touch panels" function.
FHD 1080P
Offer delicate resolution and present lifelike picture
HDMI
Include HDMI-A standard interface, highly compatible with every device
USB Type-C
Support DP Alt mode to deliver audio & video, touch signals and power
Adjustable Touch Sensitivity
Provides two options – 0 and 100 – to suit for different touch applications
10-Point Multi-Touch
Support Windows 11/ 10 touch gestures
AF Anti-Fingerprint Coating
Covered with nano-coating, it can effectively reduce fingerprint residue and is easy to clean, keeping the surface bright and clean.
Oleophobic and Hydrophobic
Utilize the lotus leaf effect (lotus effect) to increase the contact angle between water molecules and glass, making water vapor less likely to remain.
Smooth and Easy to Clean
The coating can fill the pores on the glass surface and restore it to cleanliness with a gentle wipe.
Support Various Touch Media
Gloves/Wet Fingers/Stylus
Even with slightly wet and sweaty fingers, the screen can be directly operated. For more precise input or handwriting, it can be used smoothly with a stylus with a front conductive rubber or plastic disc larger than 6mm. Users wearing gloves can operate directly without taking off their gloves, which is particularly convenient.
*Support some activated styluses with enough electromagnetic induction, such as Adonit® Dash 3/Adonit® Neo Duo.
7.5M Remote Touch Transmission
Connecting USB Cable Serially Breaks the Distance Limit
T1 series focuses more on the quality of signal transmission. To adapt to various operating environments and distance requirements, you can use 12V adapter to power T1 series monitor independently. When the T1 touch monitor is located far from the host, by connecting a USB-A to USB-C power and touch signal cable, along with several 1.5-meter USB-A (male) to USB-A (female) extension cables(optional), it can support a total length of up to 7.5 meters for touch signal distance, effortlessly solving the wiring challenge of long-distance touch control.
*When connecting to the 12V adapter, the monitor will automatically stop drawing power from the USB input.
*When extending USB cable, please use the 12V adapter to power the monitor.
Applicable to 12V & 5V
Support 5V 1.6A voltage input. When extending USB power and touch cable for a long distance, use the 12V adapter to improve voltage attenuation!
Built-in USB Gain IC
The T1 series adopts USB gain IC to strengthen the touch signal transmitted via USB, and effectively remedies the signal attenuation due to the extension of the cable length, enabling the USB cable to be extended up to 7.5 meters.
Anti-Jamming Technology
Adopt the new version of IC with high noise immunity to prevent the touch signal from being interrupted by power noise, maintaining the touch accuracy and stability.
Industry-Leading Dual Inputs
Build a Powerful Touchscreen Machine by –
HDMI & USB Type-C

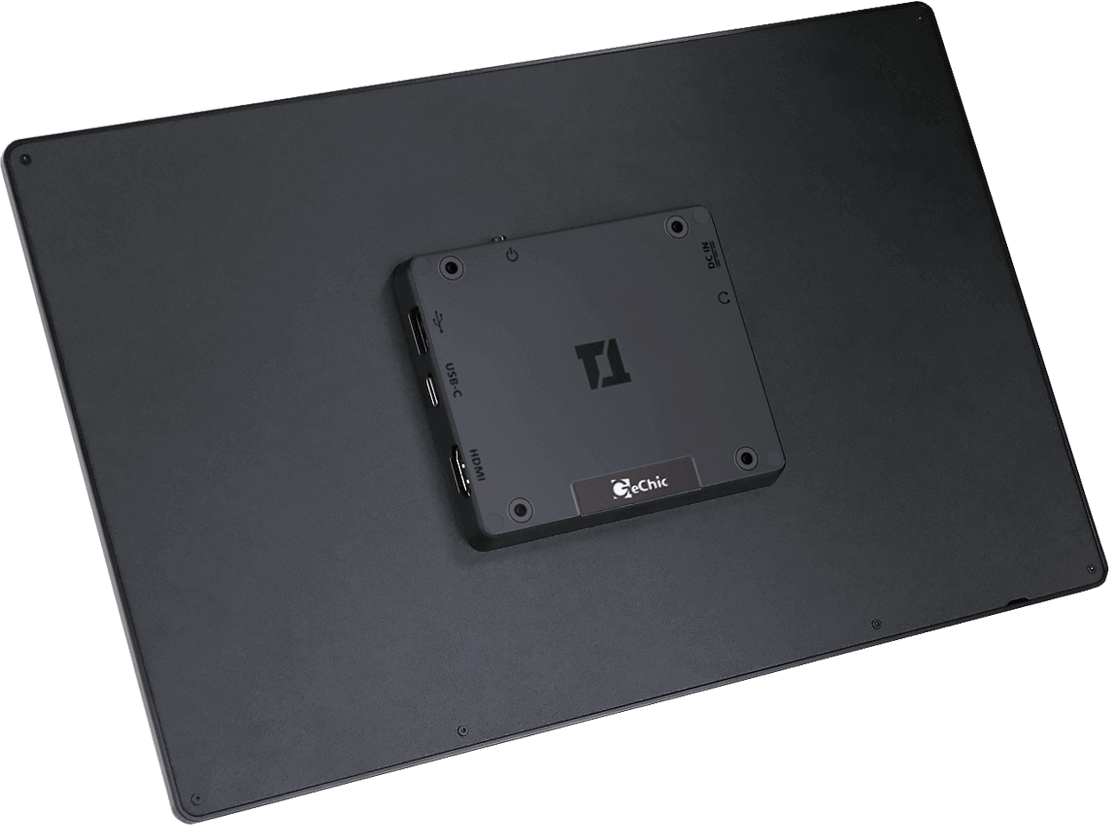

The ports are converged on the I/O block at the back of the monitor, including a standard HDMI-A port, which is suitable for universal commercial, industrial computers and laptops, etc. In view of the new generation computers keeping rolling out, the T1 series monitors adopt the USB-C interface, which support both Thunderbolt 3, Thunderbolt 4 audio and video signal input. The industry-leading interface can perfectly adapt to multiple devices.
HDMI
Desktop
Industrial PC
Embedded PC
Single-board computer
mini PC
Camera
USB Type-C
Smartphone
mini PC
Laptop
USB-A Port
for Expandability & Quick Installation
When using the USB-C port of the T1 monitor to connect to the computer, the USB-A port on the monitor can be used as the USB port of the computer for connecting to a mouse, keyboard, USB flash drive, microphone or web camera, etc. When the monitor is far from the host, the USB external device can be connected to T1 monitor without having to go far!
*When using USB-A as the expansion port of the host/computer, the monitor must be connected to the 12V adapter.
USB-A
Mouse
Keyboard
Flash Drive
Web Camera
Barcode Scanner
Card Reader

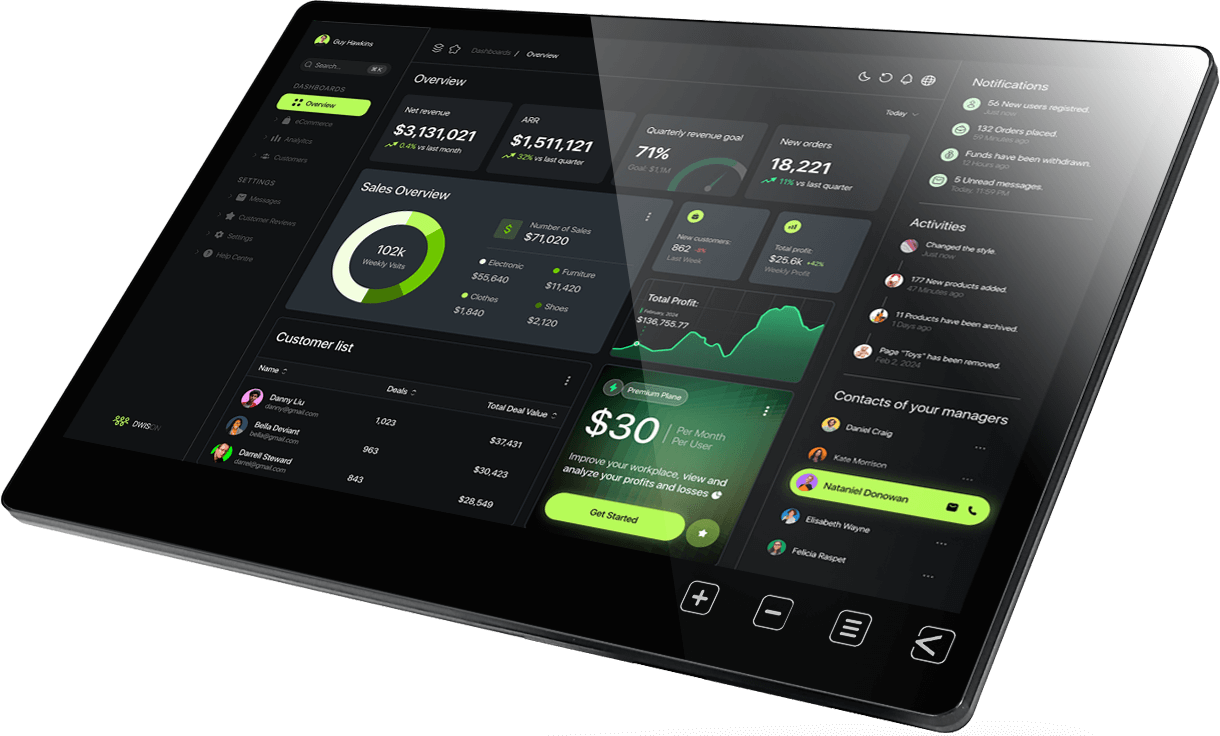

True-Flat Touchscreen Glass
Beautiful & Slim Body Shape
for Embedded Devices
The front of T1 monitor is fully plat glass, incorporating touch sensitive OSD buttons for easy access to OSD menu configuration. In addition, the rear I/O ports simplifies wiring issues. When building a touchscreen machine or equipment, the monitor can be perfectly integrated into the hardware design to build a one-body formed appearance.
OSD Button Lock to Prevent Accidental Touch
You can select "OSD Button Lock" in the OSD menu to avoid accidental touch.

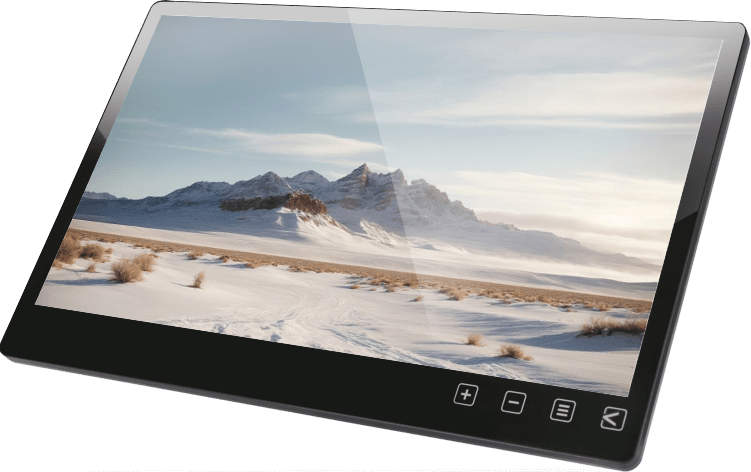

High-Strength Body Design
Built with Durability in Every Detail
The monitor is designed by solid and reliable structure. The front touch panel is covered with 7H high-hardness glass featuring the advantage of scratch resistance, dirt resistance and easy cleaning; the back is made of light and high-strength aluminum alloy backplane. The monitor integrates the ports and VESA screw mounting holes on the rear I/O block within only 11mm thickness. This design keeps the monitor slim and gives it a high-tech commercial appearance while maintaining industrial-grade durability, making it well-suited for production lines, machine rooms, and commercial spaces.
1.1mm
Toughened Glass
1.2mm
Aluminum Alloy Backplane
19.6mm
Thickness
Full HD Wide Color Gamut
Superb Picture Quality, Clear and Vivid
The T131B touchscreen monitor uses a 170° wide viewing angle panel with 1920×1080 resolution and sRGB 100% wide color gamut. It can not only present detailed and clear picture quality, but also naturally presents light and dark details with a high-specification 1000:1 contrast ratio, allowing the picture is more three-dimensional, and bring a vivid and comfortable visual experience regardless of displaying text, image or video!
FHD
Color Gamut
Contrast Ratio
Flexible & Stable VESA 75 Mount
To maximize mounting strength with minimal body thickness, the T1 monitor features VESA 75 screw holes on the back, which allows the monitor to fit any space and meet the requirements of installing to machine and mount securely to any kinds of stands.
Wall-Mounted
Use with the 75mm×75mm wall mount bracket on the market to fix the monitor on the wall.
Dual-Purpose Wall &
Desktop Stand
With VESA 75 mounting holes on the T1S2 stand(optional), the monitor can be placed on a desk or mounted on the wall. It extends the wall-mount distance, positioning the monitor for comfortable touch operation.
Monitor Arm
Just need to use four M4 screws for installing the T1 monitor to the monitor arm.
Optional Accessory of T1 Series
All-Round Direction with Stability
The T1S5 stand is made of aluminum alloy and stainless steel, features a firm, durable, high-strength structure. Using the VESA 75 screw holes on the T1 touch monitor can achieve both horizontal and vertical setup. The turntable supports 360-degree rotation, allowing change the direction of the display quickly and intuitively! This stand is born for touch applications. With its wider span of the support arms and larger base, it can provide stable support for touch operations.
What in the Product Pack
