Quick-Release Wall Mount Plate(VESA 75)

● Exclusive for M161H, M152H, and M141E portable monitors
● Made of high-strength iron
● Compatible with VESA 75 M5 screw holes
● Can be secured directly onto the wall
● Can be attached to VESA 75 monitor arm/wall bracket/T1S2 Stand/T1S5 Swivel Stand, etc.
● Equipped with M1 quick-release plug for easy installation/removal
● Suitable for installing monitors in malls, countertops, factories/production lines, offices, and home spaces

※Notice! M153U monitor is not suitable for this product.

Buy now

Specification

Product Name
Quick-Release Wall Mount Plate(VESA 75)

Applicable
M161H/ M152H/ M141E

Notice! M153U monitor is not suitable for this product.
Notice! Other portable monitors not equipped with a quick-release port are not compatible with the installation of this Wall Mount Plate.

Dimension(W*H*D)
100x58x35.5mm

Weight
94g

Material
SPCC, PC

Color
Black

Accessories
M4 Bolt and Nut *2 set
M4 Self-Tapping Screws 3/4" *3 pcs

Function
Wall Mount Plate or VESA 75 Mount Plate compatible with monitors equipped with quick-release ports, such as M141E, M152H, M161H, etc.

Installation

✪ "Click here"to download → Quick-Release Wall Mount Plate instruction manual

● Safety Warning
1. When adjusting the tilt angle, hold two sides of the monitor evenly with both hands. Avoid single-handed operation to prevent screen cracking or deforming.
2. The company shall not be liable for compensation or consequential liability for damage to equipment or injury caused by improper use or installation(e.g., improperly tightened screws, etc.).

A. Mount on the Wall
Once you've determined your preferred display orientation, follow the steps in the figures below to install the plate, either horizontally or vertically.
① Align the plate’s screw holes with the desired mounting position and secure the plate to the wall by enforcing three M4 self-tapping screws.
② Align the quick release bottom port (for horizontal) or quick release left/ right port (for vertical) on the back of the monitor with the quick release plug on the plate and insert the monitor. (Shown with M141E monitor in the figures)

B. Mount on VESA 75 Monitor Arm
Once you've determined your preferred display orientation, follow the steps in the figures below to install the plate, either horizontally or vertically.
① Align two VESA 75 screw holes on the plate with the VESA 75 screw holes on the monitor arm. Secure the plate to the monitor arm by two sets of M4 bolt and nut.
② Align the quick release bottom port (for horizontal) or quick release
left/ right port (for vertical) on the back of the monitor with the quick release plug on the plate and insert the monitor. (Shown with M141E monitor in the figures)

● This plate can be secured to the upper or lower VESA arm holes. When locked in the upper holes, the monitor offers a wider range for backward tilt angles.

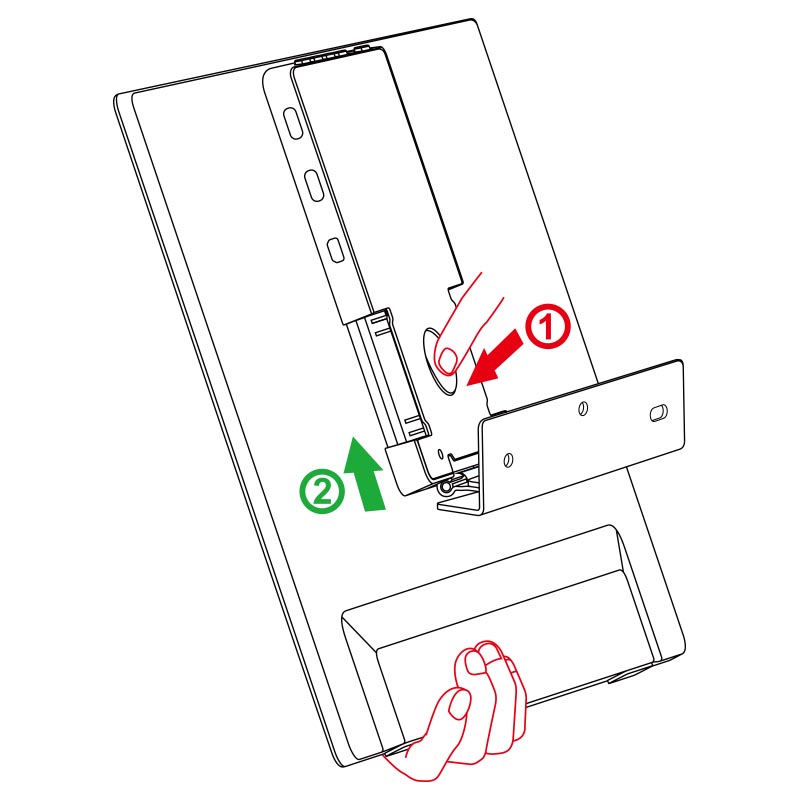

C. Detach the Monitor
Tile the screen slightly forward. Hold the bottom of the monitor with one hand and press the round button of the quick release plug with the other hand to detach the monitor.

2D Drawing

Revolutionary Design

Mount Screen on Wall in a Second

Say goodbye to bulky monitors! The M1 series of monitors offer a slim and portable design that can also be mounted on walls. To simplify installation, the quick-release wall mount plate has been specifically designed for M1 series monitors. This plate can be easily attached to the wall or various VESA monitor arms and then plugged into the M1 monitor, saving your installation time and effort.

Slide 1

Stable and Robust, Closer to the wall

This wall mount plate is made of sturdy iron and has three screw holes to attach M1 series of monitors to the wall. The compact design of the plate allows the monitor to be positioned a mere 3.5cm from the wall, eliminating the need for additional recesses in the wall. Simple to install, the wall mount plate enhances the appearance of your setup.

Iron with Powder Coating

Fine-textured matte black surface

Quick-Release Plug

Plug & Play, Easy Installation

Strong Hinge

Strong support and flexible tilt adjustment.

Rotate the Direction!

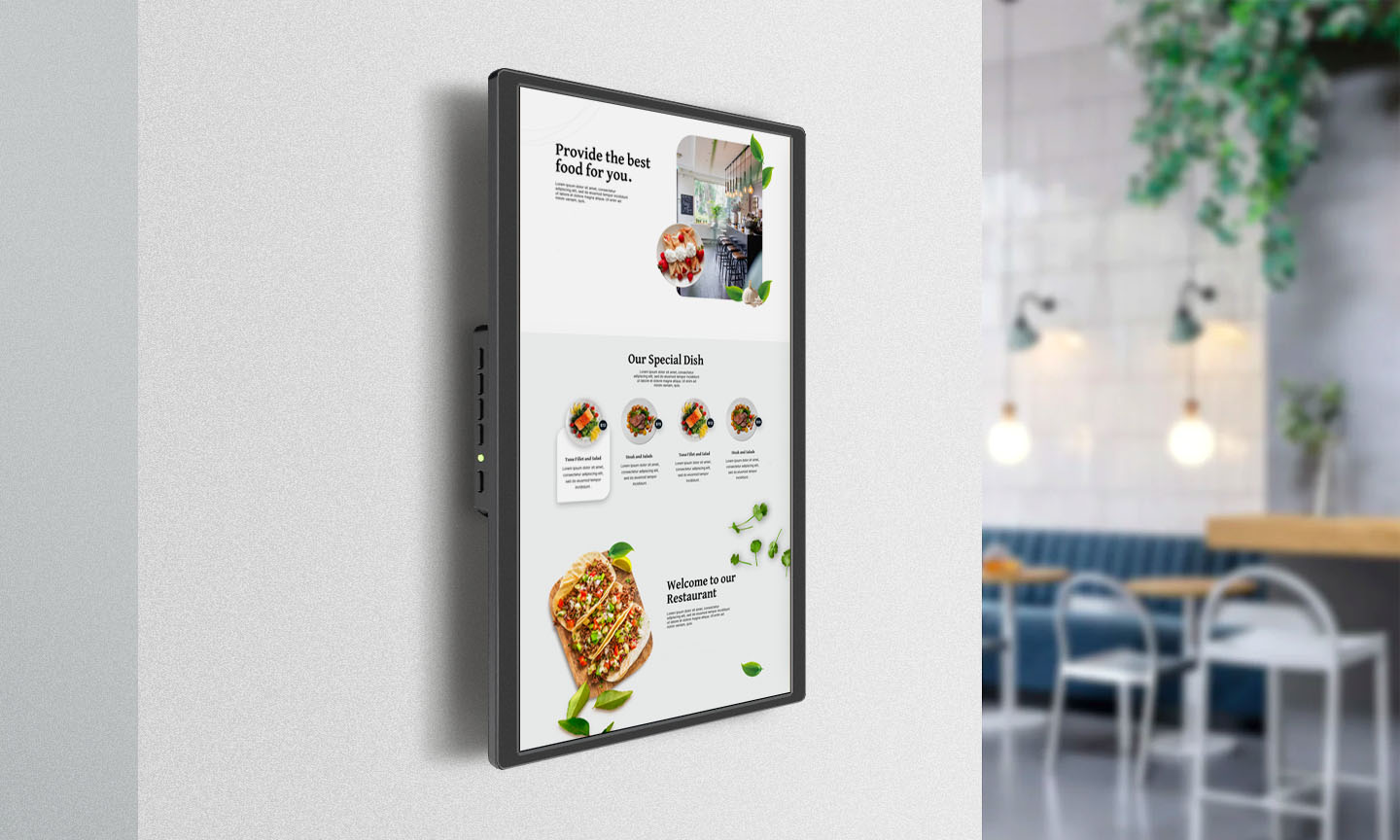

Perfect to Watch in Portrait

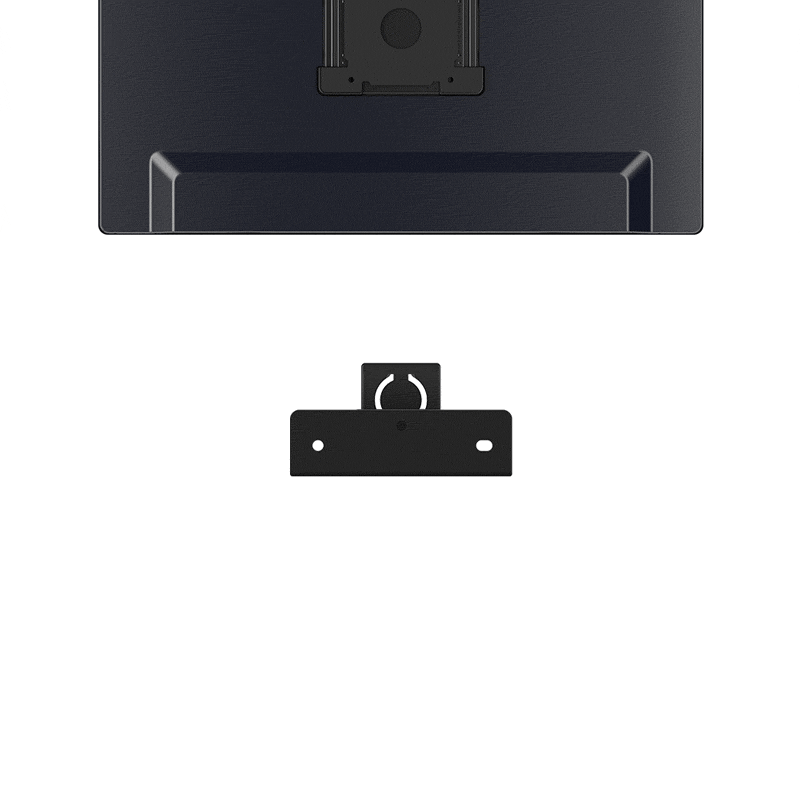

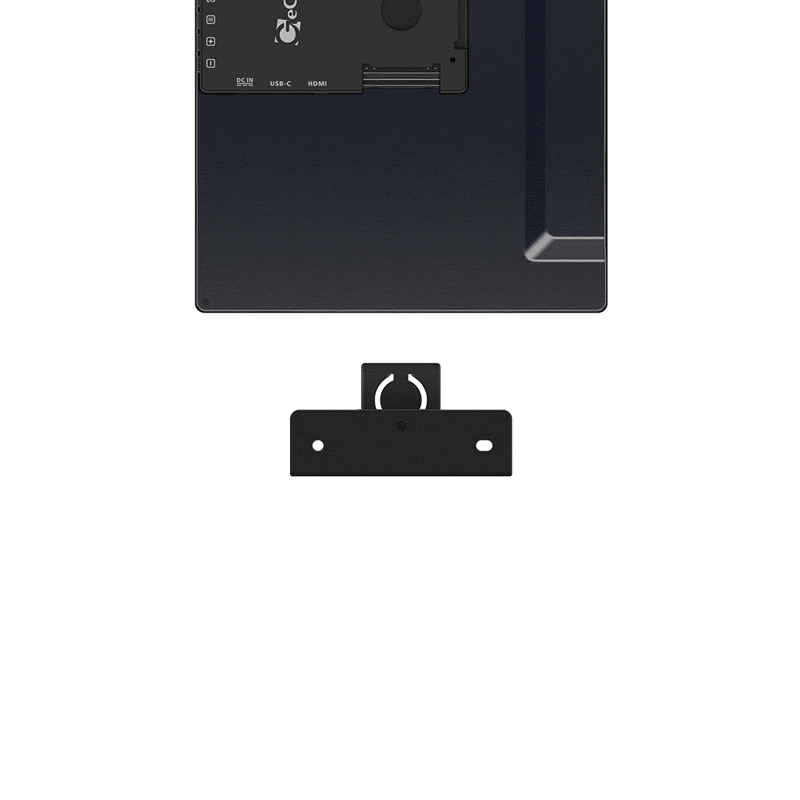

To achieve standard horizontal viewing, simply insert the quick-release plug of the plate into the bottom quick-release slot of the M1 monitor. By inserting the right or left quick-release slot into the plate, the M141E monitor can be turned to a vertical orientation of either 90° or 270°.

Slide

Slide

M161H

M152H

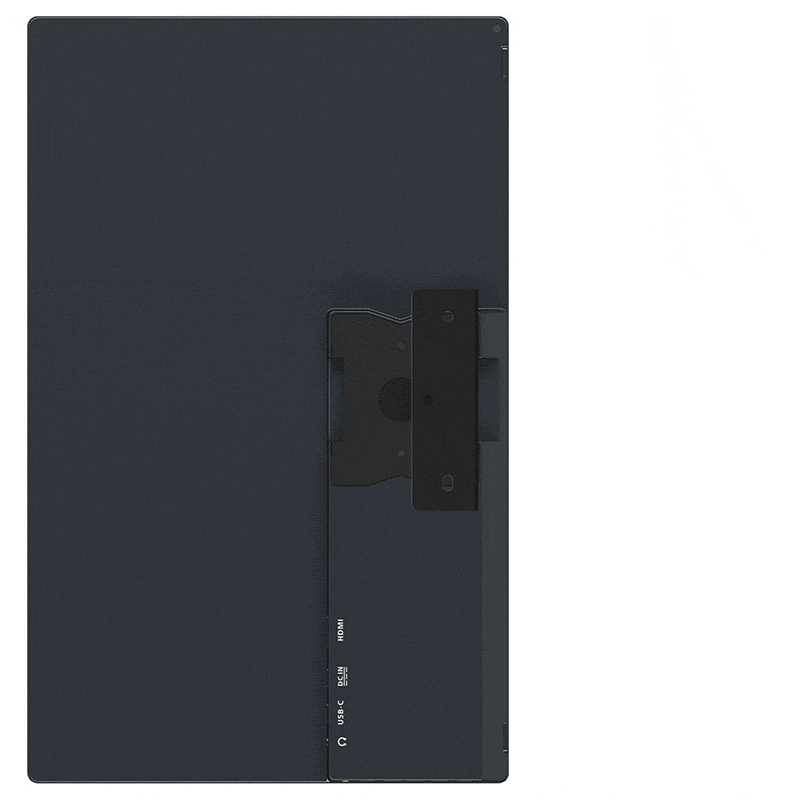

← To display M161H/M152H in portrait mode, simply lock the quick-release wall mount plate straight onto the wall. Insert the monitor into the quick release plug on the plate horizontally through top / bottom quick-release slots. Finally, fine-tune the horizontal tilt angle of the monitor.

Slide

*Caution: Avoid colliding the monitor with the wall while adjusting the tilt angles. The adjustable tilt angle varies depending on the model.

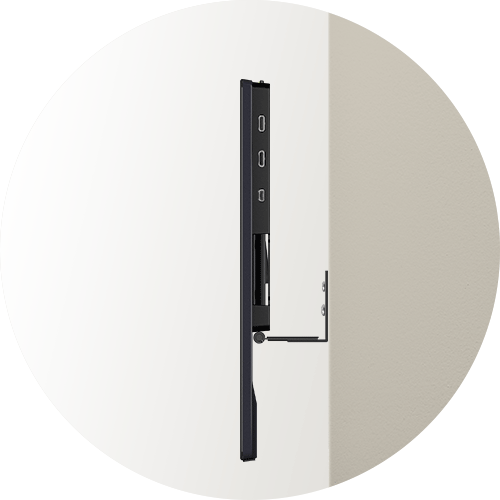

High-Strength Hinge

Free Adjustable Tilt Angle

The quick-release plug features a high-strength hinge design that allows the screen to be tilted forward and backward according to the mounting position and viewing needs.

VESA 75 Standard Holes

Compatible for Various Mounts

When paired with a VESA 75 monitor arm, the quick-release wall mount plate can be easily elevated by using two sets of bolts and nuts to attach to the 75mm holes on either the top or bottom row of the VESA arm!

*To rotate the orientation or adjust the height of the monitor, please use the VESA bracket of the arm to turn or move the monitor. Do not directly hold and turn the monitor.

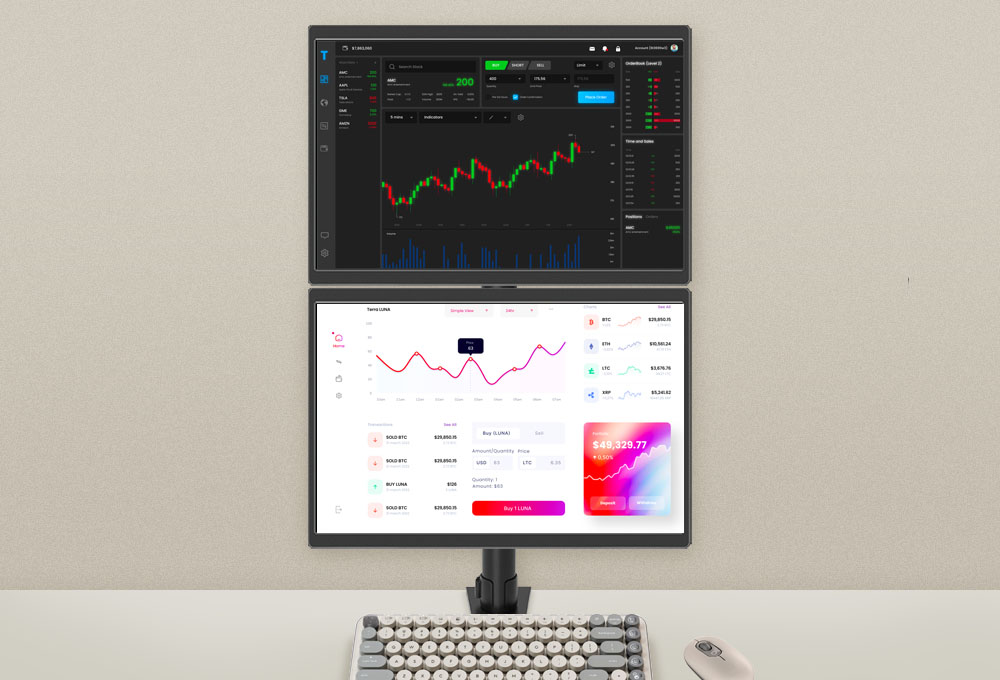

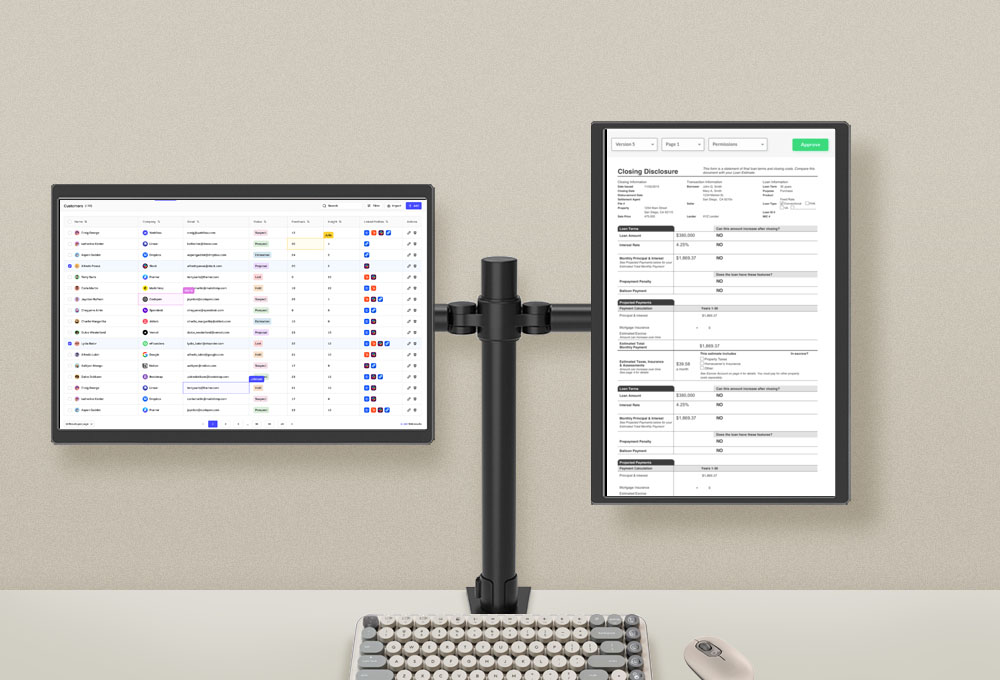

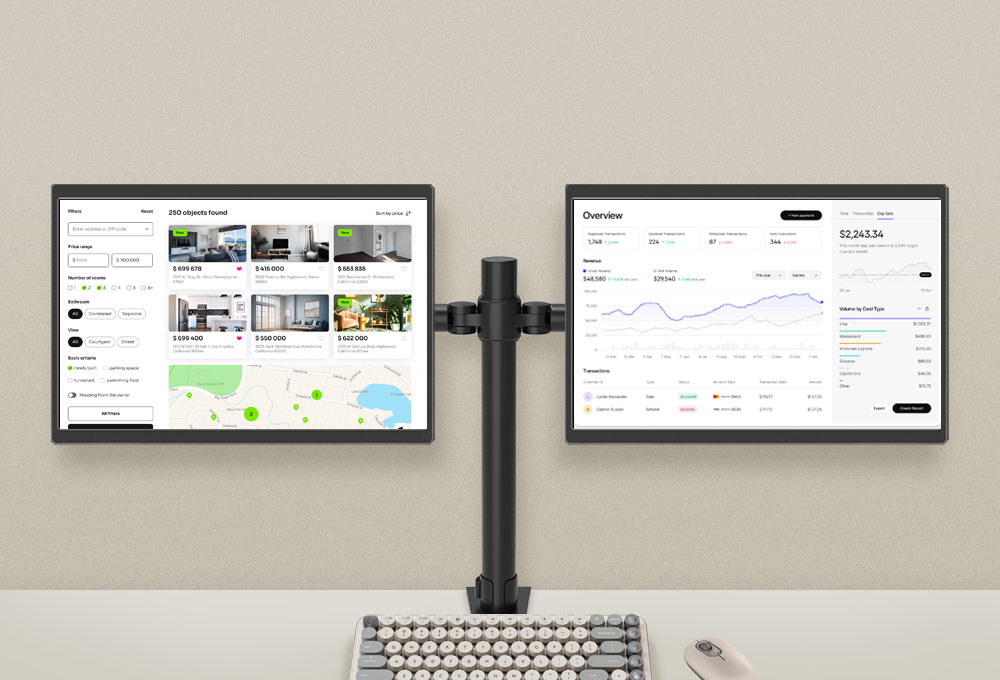

Dual-Arm, Dual-Screen

A Perfect Match for Your Large Monitor

When using a large desktop monitor as your primary display, the M1 series of monitors can be converted to a vertical second monitor with a twin cantilever VESA　arm. Additionally, two M1 monitors can also be utilized to configure a dual-monitor workstation!

Coding

Slide

Suitable models :
